How to Prevent Rear Derailleur Damage When Flying

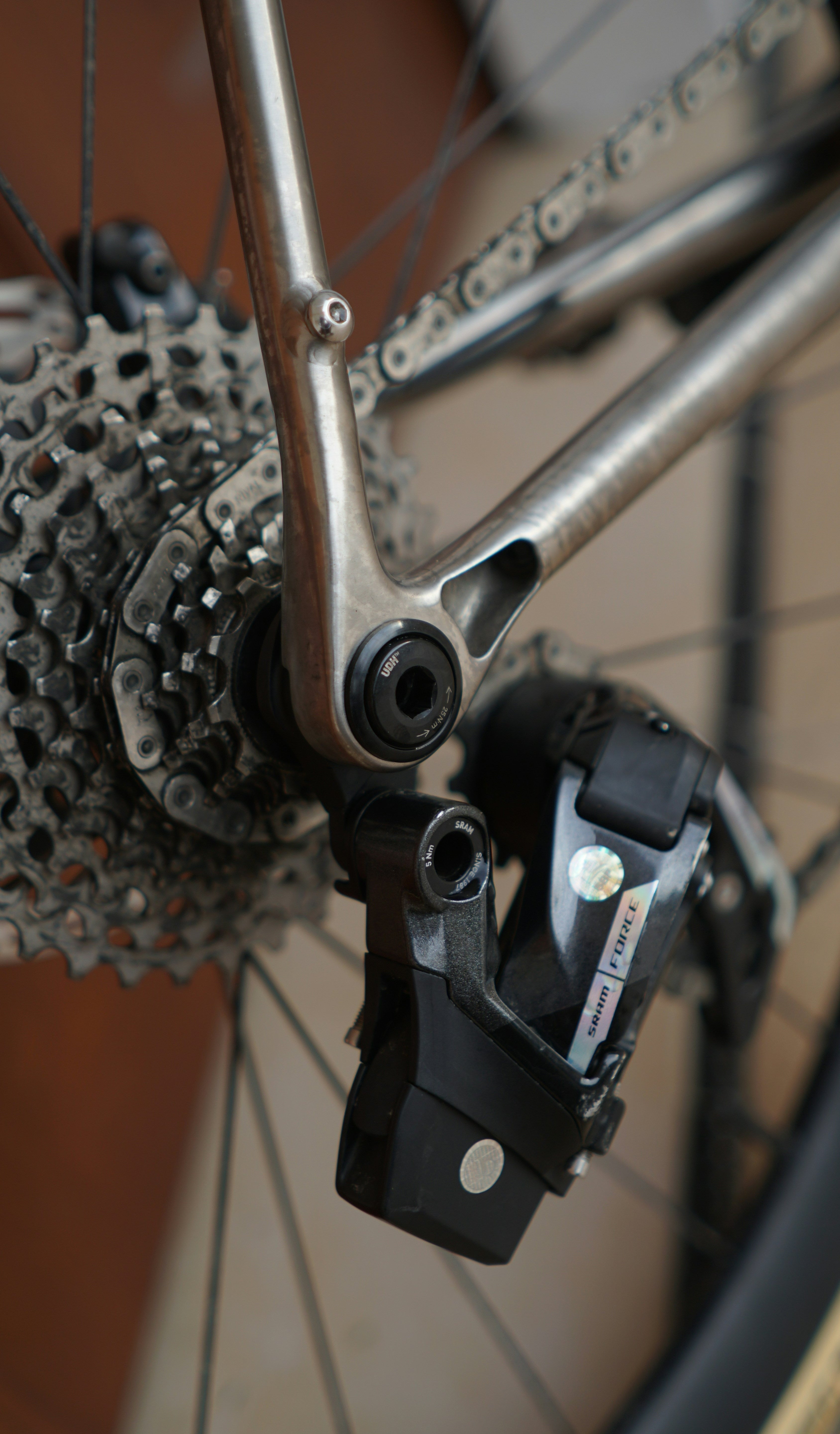

The rear derailleur is one of the most fragile components on any bike — road, gravel, mountain, or triathlon — and on modern bikes, it's often one of the most expensive too. Outside of the frame itself, it's the single part most worth protecting when you fly.
There's nothing worse than building your bike up the day before a race, or on the first morning of a cycling trip you've spent months planning, only to discover your derailleur got bent in transit and no longer shifts properly. That's an inconvenient fix at home — and a potentially trip-ending one if you're traveling internationally with limited access to parts or a shop. A little extra care before you close your case saves a lot of frustration on the other end.
This guide covers how to protect your derailleur based on your case type, how to remove it (or the hanger) safely, and what to pad it with if you leave it installed.
Does Your Case Design Change What You Need to Do?
Not all travel cases pack a bike the same way, and that difference matters more for derailleur protection than almost anything else. Before deciding whether to remove your derailleur, it helps to know which of the two common case designs you're working with.
Cases Where the Frame Rests Along the Base
Many popular travel cases — including the Orucase B2 and the EVOC Bike Bag Pro — pack the frame resting along the bottom of the case. Manufacturer photos often show bikes packed with the derailleur left installed, but most frequent flyers agree it's best to remove it in this style of case.
Here's why: if the derailleur stays installed, it also rests along the base of the case — directly exposed to impact if the case is dropped or the bottom takes a hit during handling. In any case where the frame packs along the bottom, rear derailleur removal is essential.
It's also worth removing the derailleur hanger in this case style. On most bikes, the hanger detaches from the frame independently of the derailleur itself. Removing both as a single unit protects each of these fragile drivetrain parts from damage.
Cases with Suspended/Internal Dropout Mounts
Other case designs — like the Orucase Sentinel — mount the bike so the frame is suspended above the base of the case rather than resting on it. In this style, the derailleur floats in space and never contacts the bottom of the bag, which helps prevent damage from drops or bottom-impact hits.
That said, suspension alone doesn't guarantee protection. Side impacts to the case, or contact from other items packed alongside the frame (like your wheels), can still reach the derailleur.
Removal isn't strictly required in a suspended-mount case, but it's still recommended for a worry-free travel day. If you do leave it installed, add padding — a grease rag wrapped around the derailleur and secured with a zip tie is a simple, effective option; bubble wrap or foam padding also work well.
How to Remove the Derailleur or Hanger
Removing the Derailleur from the Hanger
On most bikes, the derailleur attaches to a hanger, which then connects to the frame. To detach the derailleur from the hanger:
- Locate the single bolt connecting the derailleur to the hanger — typically loosened with a 5mm hex/Allen wrench.
- Loosen and remove the bolt.
- Mechanical shifting: the derailleur will hang from the rear shifter cable once detached. Pad it and secure it to your chainstay so it doesn't move in transit.
- Shimano Di2 or Campagnolo EPS (electronic, wired): unplug the derailleur for more freedom to position it when packing.
- SRAM eTap (wireless): no cables to manage at all, making removal the simplest of the three.
Removing the Derailleur Hanger as a Unit
If you'd rather remove the derailleur and hanger together as one piece, the process varies by frame — some use a single external bolt at the rear dropout, others use a two-bolt system. Confirm your frame's specific attachment style before removing it. Once detached, wrap the derailleur and hanger in padding and either secure them along your chainstays or pack them safely elsewhere in your case.
What to Use for Derailleur Padding
Whether your derailleur stays on the frame or comes off entirely, padding is what actually prevents damage. A few reliable, low-cost options:
- Grease rag or towel — wrap and secure with tape or a zip tie
- Bubble wrap — good for extra cushioning around an installed derailleur
- An old t-shirt — works in a pinch, secured the same way
- Rubber gear strap — useful for keeping any of the above padding in place without shifting during transit
Whatever padding you use, secure it firmly — loose padding that shifts mid-flight isn't doing its job. Purpose-built foam or plastic derailleur/dropout protection products exist as well, but check compatibility with your specific case first — many aren't designed to work with cases that require mounting your dropouts to an internal frame, like the Sentinel.
Final Thoughts
Your rear derailleur is small, exposed, and expensive — exactly the combination that makes it worth a few extra minutes of prep before every flight. Know how your case packs your frame, remove the derailleur (or at least pad it well) accordingly, and you'll avoid one of the most common and most preventable forms of travel damage.
For more on packing your bike for a flight from start to finish, see our guide on how to pack a bike for air travel, or check out our Complete Guide to Flying With a Bike for airline-specific rules and fees.
